Small Stationary Engines

Durable and versatile, our small stationary engines are ideal for powering a wide range of equipment — available in multiple configurations to suit your specific needs.

  • Dirable
  • Versatile
  • Range of Specifications
Small Stationary Engines

1 of 1
- +

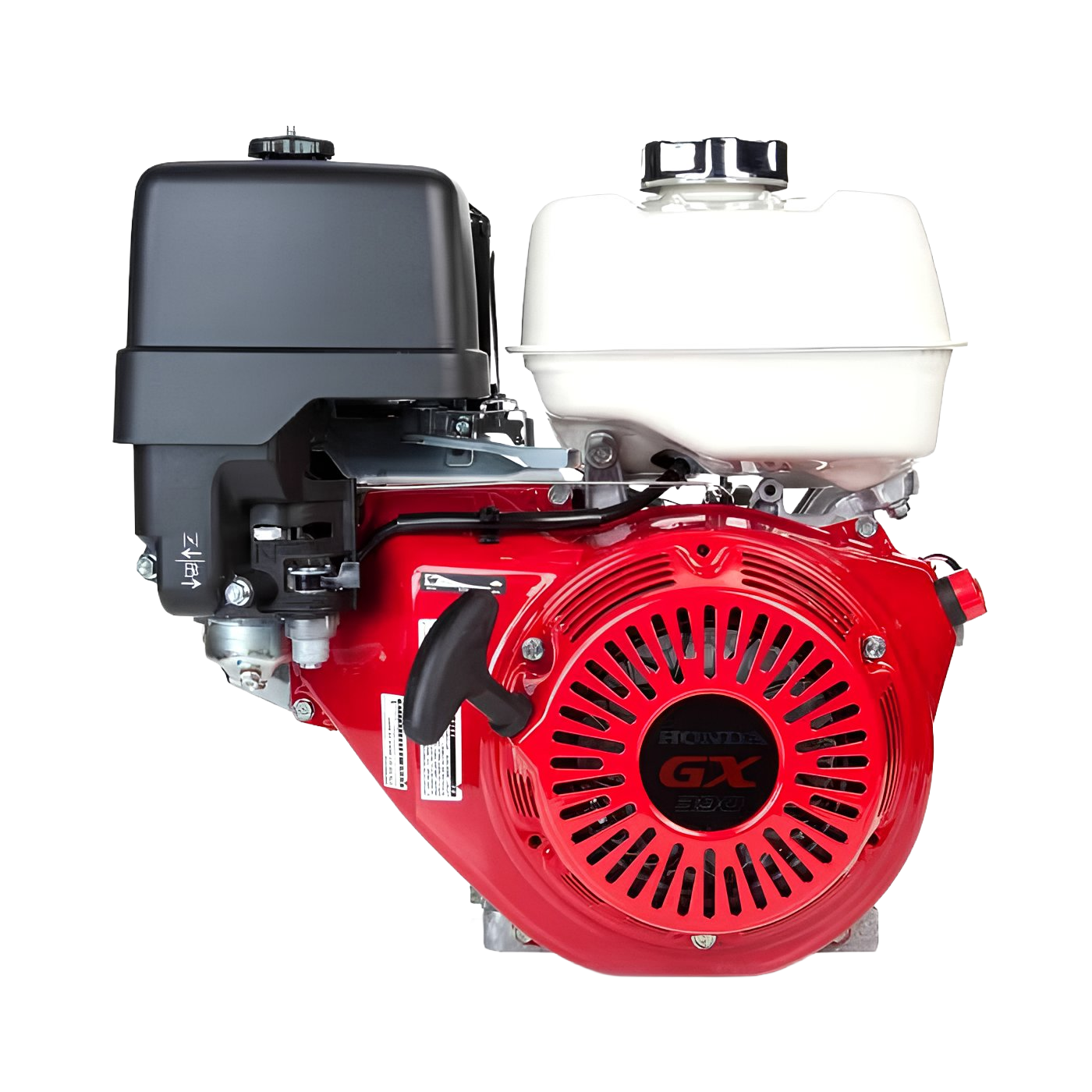

Honda Engine Petrol 13 HP Recoil
166 GX390UT2XQXUZ

Information

As the largest single cylinder engine of Honda?s flagship GX range, the Stationary Engine GX340 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.Due to its power and emissions compliance, heavy-duty Forestry Equipment, Agricultural Equipment and Water Pumps are also powered by the gutsy GX390.The Stationary Engine GX390 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.Just like the entire GX Engine range, the GX390 is covered by an extensive Honda 3 Year Warranty.

Specifications
  • Engine – HP – 13
  • Engine – Start – Recoil
  • Engine – Shaft – 1″ Keyed Q
  • Bore x Stroke: 88 mm x 64 mm
  • Displacement: 389 cc
  • Fuel Type: Unleaded
  • Fuel Tank Capacity: 6.5 L
  • Fuel Consumption: 3.7 L/hr
  • Oil Capacity: 1.1 L
  • Oil Alert System: Yes
  • Dimensions L x W x H: 405 mm x 450 mm x 443 mm

1 of 1
- +

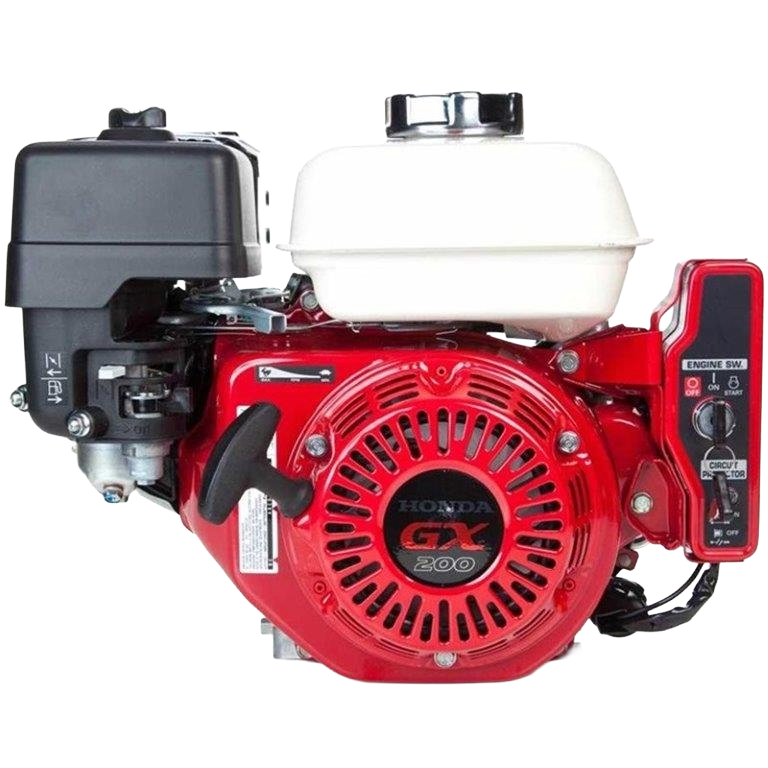

Honda Engine Petrol 6.5 HP Electric
166 GX200UT2QXE2

Information

The Honda GX200 is a versatile and highly reliable 6.5hp stationary engine trusted across a wide range of applications — from pressure washers and water pumps to generators, tillers, and go karts. Built with Honda’s OHV design, precision camshaft, and high compression ratio for superior fuel efficiency, it’s covered by Honda’s 3-year warranty for both domestic and commercial use — giving you complete peace of mind.

Features
  • The Stationary Engine GX200 is used in all sorts of applications.
  • From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX200.
  • The Stationary Engine GX200?s Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
  • It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
  • And the GX200 incorporates a high compression ratio for better fuel efficiency than its competitors.
  • The GX200, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.
  • That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX200 is built to last.
Specifications
  • Engine – HP – 6.5
  • Engine – Start – Electric
  • Engine – Shaft – 3/4″ Keyed Q
  • Engine Type: 4-stroke, overhead valve, single-cylinder
  • Displacement: 196 CC
  • Fuel Type: Unleaded
  • Oil Capacity: 0.6 L
  • Oil Alert System: Yes
  • Fuel Tank Capacity: 3.1
  • Dimensions:  L 313 mm x W 376 mm x H 346 mm

1 of 1
- +

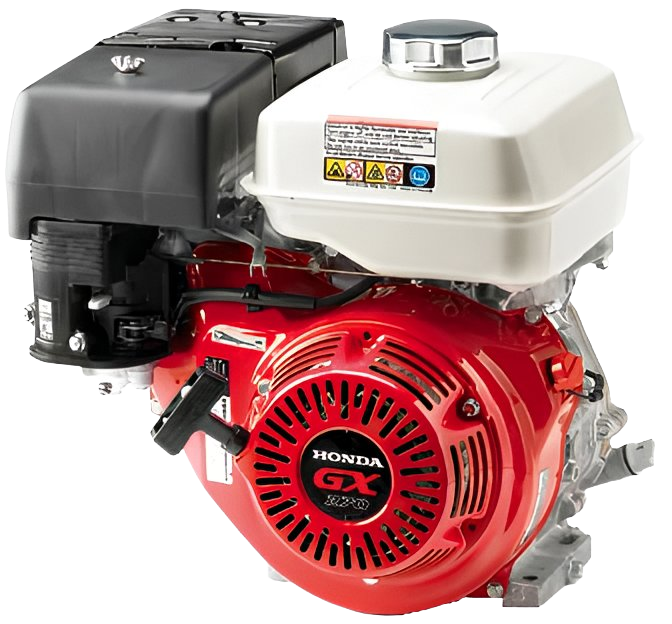

Honda Engine Petrol 9 HP Recoil
166 GX270UT2QXUZ

Information

A robust 9hp recoil-start stationary engine built for demanding applications, featuring a forged steel crankshaft, ball bearing supported crankcase, and precision camshaft design for optimal fuel efficiency and valve timing. With a heavy-duty recoil starter, automatic mechanical decompression system, and Oil Alert protection, it’s engineered for long-lasting reliability in tough commercial and industrial environments.

Features
  • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
  • Ball bearing supported crankshaft for greater stability.
  • Forged steel crankshaft and rigid crankcase.
  • Heavy duty recoil starter.
  • Automatic mechanical de-compression system.
  • Oil Alert.
Specifications
  • Engine – HP – 9
  • Engine – Start – Recoil
  • Engine – Shaft – 1″ Keyed Q

1 of 1
- +

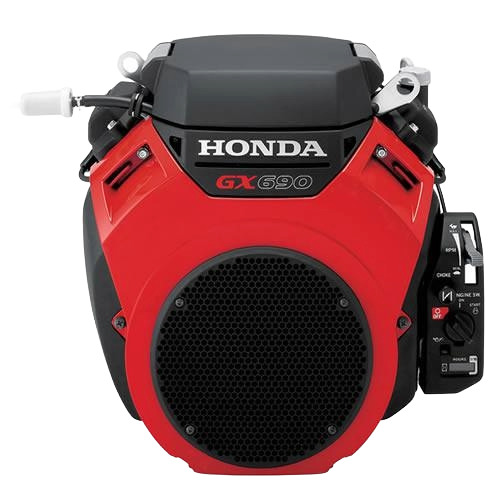

Honda Engine Petrol 27 HP Electric
166 GX690 RHTXF7

Information

The Honda GX690 V-Twin is a premium 27hp electric-start stationary engine — the top of Honda’s GX range — trusted across pressure washers, generators, water pumps, forestry, and heavy construction applications. Its fuel-efficient carburetion delivers near fuel-injection economy, while the high-capacity oil pump, Oil Alert system, dual cylindrical air filter, and large diameter air intake ensure reliable, long-lasting performance. Backed by Honda’s 3-year domestic and commercial warranty.

Note: Muffler Not Supplied with engine

Features
  • Honda’s V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment throughout Australia.
  • The Stationary Engine GX690 V-Twin can also be found in Tillers / Cultivators and other Agricultural Equipment, Generators as well as many different applications.
  • And if it?s something more hardcore that you need power for, the GX690 is also used in the Forestry and Construction/Industrial industries.
  • The fuel economy of the Stationary Engine GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
  • The Stationary Engine GX690?s high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry.
  • There?s a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.
  • All Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
  • All just extra reasons for you to Love Your Honda GX690 V-Twin.
Specifications
  • Engine – HP – 27
  • Engine – Start – Electric
  • Engine – Shaft – 1 1/8″ Keyed Q
  • Engine Type: Air cooled 4-stroke OHV petrol engine, 90° V-twin design
  • Bore x Stroke: 2 / 78 mm x 72 mm
  • Displacement: 688 CC
  • Fuel Type: Unleaded
  • Oil Capacity: 1.9 L
  • Dimensions: L 429 mm x W 410 mm x H 438 mm

1 of 1
- +

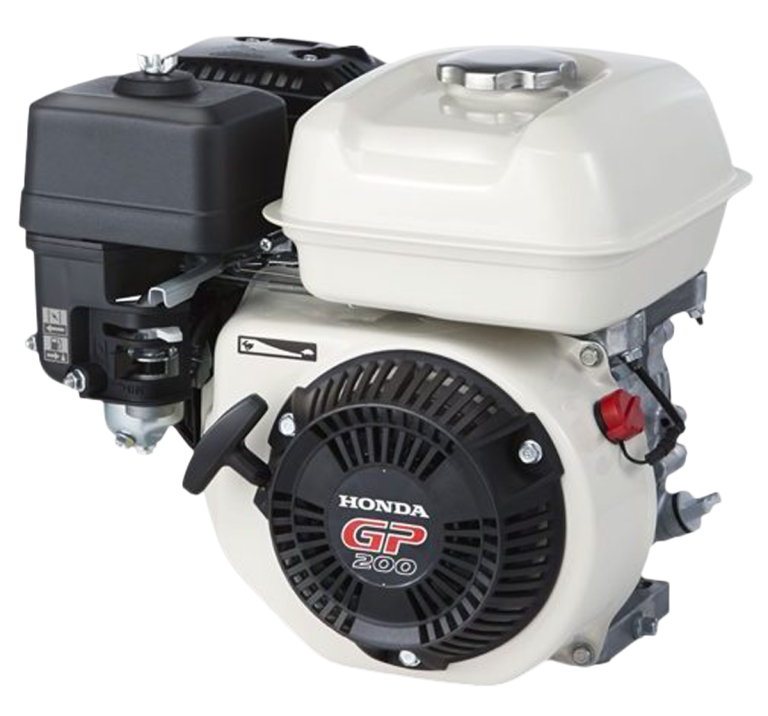

Honda Engine Petrol 6.5 HP
166 GP200HQX3

Information

The Honda GP200 is a reliable 6.5hp recoil-start petrol engine ideal for domestic and light-duty applications including pressure washers, water pumps, and generators. With a precision camshaft for optimal fuel efficiency, forged steel crankshaft, ball bearing supported crankshaft for low vibration, and a large capacity exhaust system for quiet operation, it’s a dependable everyday engine backed by Honda’s trusted engineering.

Specifications
  • Power: 6.5 HP
  • Engine Type: 4-stroke, OHV, single-cylinder
  • Displacement: 196cc
  • Start Type: Recoil
  • Shaft: 3/4″ Keyed
  • Fuel Type: Unleaded Petrol
  • Fuel Tank Capacity: 3.1L
  • Warranty: 2 Year Domestic / 3 Month Commercial

1 of 1
- +

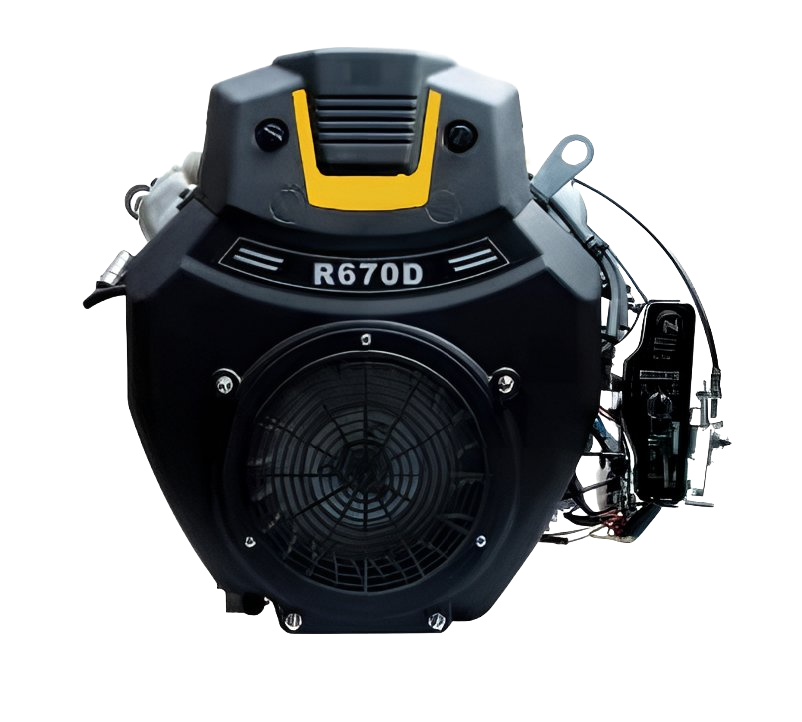

Powerease 24 HP 670CC Engine Q-Shaft
166 R670-EQ

Information

The Powerease 670 is one of the most reliable V-Twin Petrol Engines in the market. Offering 24 hp, this V-Twin Horizontal engine provides the power you need for serious machines you don’t want to fail. Comes with Electric Start and Low Oil sensor shut down. Horizontal 1″ Straight Keyed (Q) Shaft.

Specifications
  • Cylinders: 2 Cylinder V-Twin Horizontal
  • Engine Type: Air-Cooled 4-Stroke OHV
  • Displacement: 670CC
  • Engine HP: 24 hp
  • Starting System: Electric
  • Ignition System: Transistorized Magneto (TCI)
  • Compression Ratio: 8:5:1
  • Fuel Tank Capacity: Auxiliary
  • Fuel: Unleaded 86 Octane or higher
  • Shaft Size & Key Way Size: 1″ Straight Keyed Q 1/4“ X 2.2”
  • Shaft Rotation: Counter Clockwise
  • Torque: 33.2 LB-FT (45Nm) @ 2,500 RPM
  • Max Power Output: 24 hp @ 3,600 RPM
  • PTO Bolt Size: 3/8-24 UNF
  • Bore x Stroke: 78 mm x 70 mm
  • DIMS (Not Including Crank Shaft): 530 mm x 560 mm x 465 mm (20.9″ x  22″ x 18.3″)
